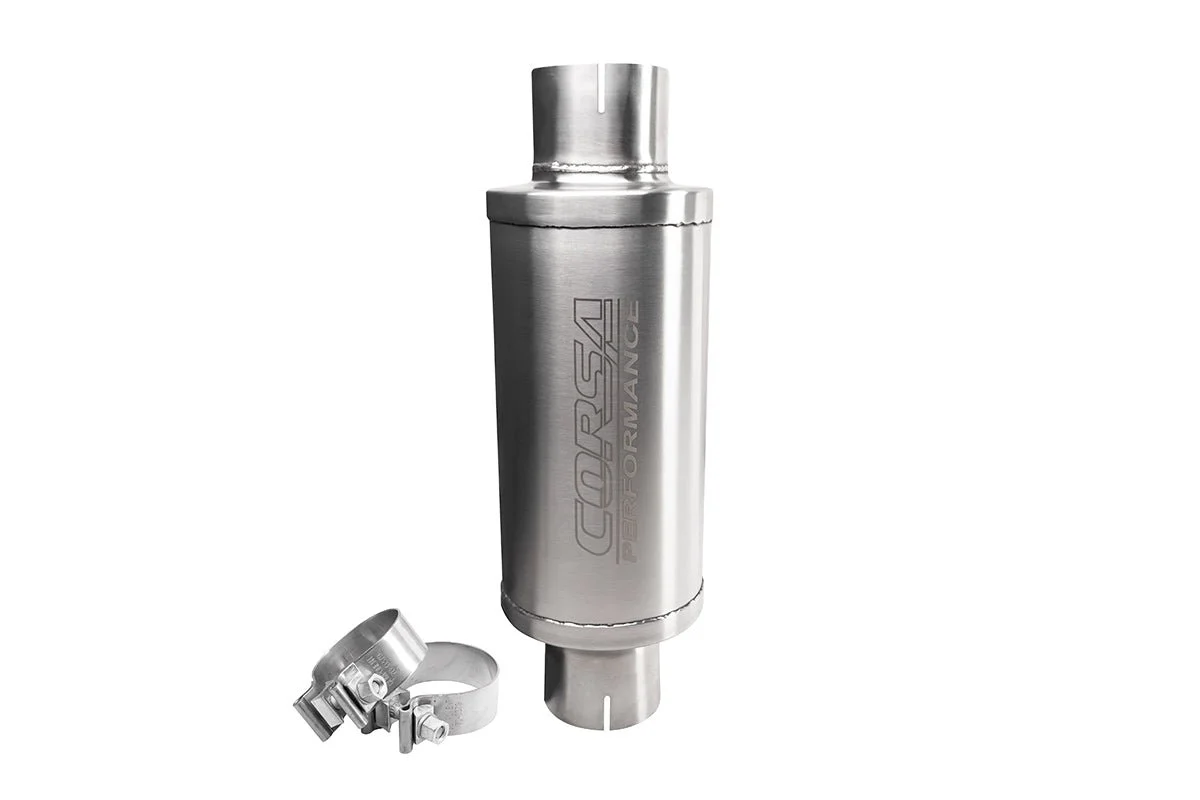

3.00" Packed Resonator
Notched and Expanded Clamp In Design
*Pipe through 6-8dB Resonator is 3.0" diameter. Pipe through 2-3dB is 2.75".
 |  |  |  | |
|---|---|---|---|---|
| Decibel Reduction | 6-8dB | 6-8dB | 2-3dB | 2-3dB |
| Case Shape | Round | Round | Round | Round |
| Inlet/Outlet Diameter | 3.00" I.D. | 3.00" I.D. | 3.00" I.D. | 3.00" I.D. |
| Inlet/Outlet Quantity | 1 | 1 | 1 | 1 |
| Inlet/Outlet Location | Center | Center | Center | Center |
| Inlet/Outlet Style | Expanded & Notched | Expanded & Notched | Expanded & Notched | Expanded & Notched |
| Installation Style | Slip Fit | Slip Fit | Slip Fit | Slip Fit |
| Reversible | ✓ | ✓ | ✓ | ✓ |
| Case Exterior Length | 10.75" | 10.75" | 4.75" | 4.75" |
| Case Width | 5.50" | 5.50" | 5.00" | 5.00" |
| Case Height | 5.50" | 5.50" | 5.00" | 5.00" |
| Overall Length | 16.25" | 16.25" | 10.00" | 10.00" |
| Outlet Style | Standard, Without Tip | Standard, Without Tip | Standard, Without Tip | Standard, Without Tip |
| Quantity | Sold Individually | Sold Individually | Sold Individually | Sold Individually |
| Weight | 6.5lbs | 5.5lbs | 4.5lbs | 3.5lbs |
| Clamps QTY | 2 | 0 | 2 | 0 |
| Part # | PKM2003 | PKM2002 | PKM2009 | PKM2008 |
| Weld In Installation Style Available: PKM2000 |
An Absorptive Resonator Engineered for Ease of Installation, Sound Suppression and Lasting Performance. 25 years of CORSA Performance quality arrives in the form of a packed resonator designed to outperform the competition. Featuring Industry-leading quality and construction, PRO SERIES® packed resonators offer custom fabricators a better solution to maximize performance while tailoring the volume and tone of the exhaust note.
