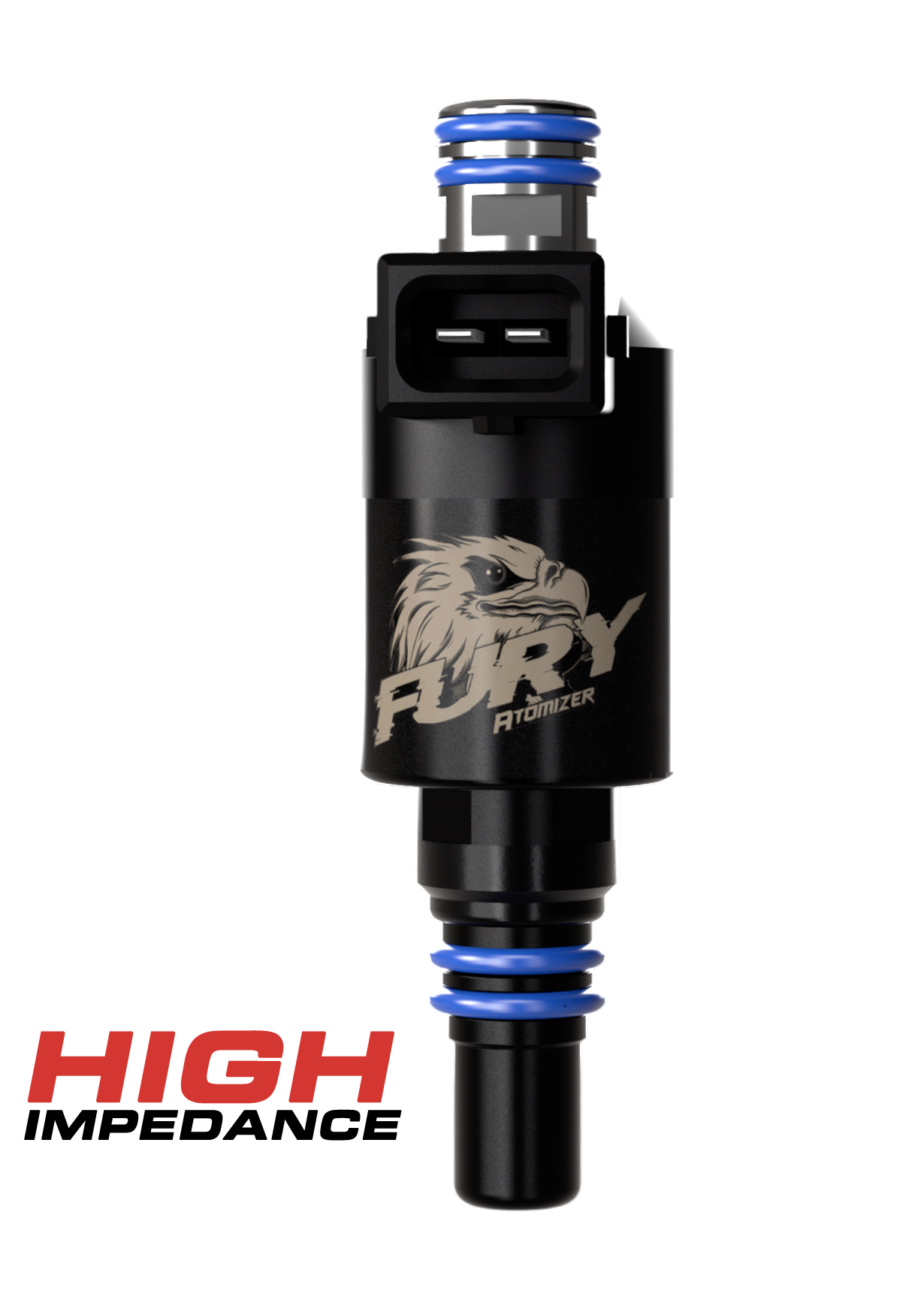

Atomizer High Impedance Racing Injectors – 630–2900cc (60–275pph)
Maximize your fuel delivery with Atomizer’s high-performance, rebuildable racing injectors—built for serious racers and high-horsepower street builds and engineered for perfect idle and street manners. Hand-crafted in the USA, these injectors deliver rapid response, ultra-precise metering, and micro-droplet atomization for consistent combustion in boosted or naturally aspirated engines.
Available Flow Sizes:
| Flow Rate (pph) | Flow Rate (cc/min) |
|---|---|
| 60 | 630 |
| 65 | 683 |
| 70 | 735 |
| 75 | 788 |
| 80 | 840 |
| 85 | 893 |
| 90 | 945 |
| 95 | 998 |
| 100 | 1050 |
| 105 | 1103 |
| 110 | 1155 |
| 115 | 1208 |
| 120 | 1260 |
| 125 | 1313 |
| 130 | 1365 |
| 135 | 1418 |
| 140 | 1470 |
| 145 | 1523 |
| 150 | 1575 |
| 155 | 1628 |
| 160 | 1680 |
| 165 | 1733 |
| 170 | 1785 |
| 175 | 1838 |
| 180 | 1890 |
| 185 | 1943 |
| 190 | 1995 |
| 195 | 2048 |
| 200 | 2100 |
| 205 | 2153 |
| 210 | 2205 |
| 215 | 2258 |
| 220 | 2310 |
| 225 | 2363 |
| 230 | 2415 |
| 235 | 2468 |
| 240 | 2520 |
| 245 | 2573 |
| 250 | 2625 |
| 255 | 2678 |
| 260 | 2730 |
| 265 | 2783 |
| 270 | 2835 |
| 275 | 2888 |
Key Features:
Compatible with gasoline (pump and race), methanol, ethanol, nitromethane, E85, and CNG—ready for drag, street, or extreme track setups.
Proprietary Atomizer Flow Technology for superior spray, clean throttle response, and smooth idle.
Billet stainless steel construction and high-impedance design—works with most ECUs, no resistor pack required.
Each injector is hand-assembled, internally blueprinted, and flow-matched in the USA for unmatched quality.
Fully rebuildable—built for long-term reliability and easy serviceability.
Technical Specs:
Body diameter: 25 mm
Length (O-ring to O-ring): ~62.5 mm
Overall length: 86.5 mm (extended tip for optimal spray)
Dual 14 mm Viton O-rings for enhanced durability
Bosch EV1 90° connector for precise fitment
Built-in stainless steel inlet filter (requires 10-micron post-pump filter)
Upgrade to Atomizer’s high-impedance injectors for proven performance, consistency, and long-term reliability. Order now and level up with the world's fastest racing injectors!
